Tubo Bioon Ponta e Bolsa K9
Tubo Classe K9 com juntas JGS, JTI ou JTE. Tubo de ferro fundido dúctil fabricado conforme norma NBR 7675 para transporte de água bruta ou tratada.
Revestimento Interno:
Argamassa de cimento alto-forno
Revestimento Externo:
Zinco metálico e pintura em epóxi azul
Argamassa de cimento alto-forno
Revestimento Externo:
Zinco metálico e pintura em epóxi azul
| Massas | |||||||||
|---|---|---|---|---|---|---|---|---|---|

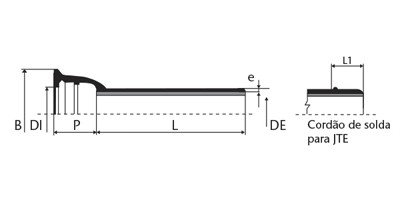

| DN | L | L1 | DE | DI Bolsa | B | P | e nom Ferro | Por Metro | Total |
| mm | mm | mm | mm | mm | mm | mm | Kg | Kg | |
| 80 | 6 | 98,0 | 101,0 | 144,1 | 92,5 | 6,0 | 14,5 | 87,0 | |
| 100 | 6 | 118,0 | 121,0 | 166,9 | 94,5 | 6,0 | 18,1 | 108,6 | |
| 150 | 6 | 170,0 | 173,0 | 220,8 | 100,5 | 6,0 | 27,3 | 163,8 | |
| 200 | 6 | 222,0 | 225,0 | 275,1 | 106,5 | 6,3 | 36,7 | 220,2 | |
| 250 | 6 | 274,0 | 277,0 | 328,6 | 105,5 | 6,8 | 48,0 | 288,0 | |
| 300 | 6 | 115,0 | 326,0 | 329,0 | 410,0 | 107,5 | 7,2 | 60,4 | 362,4 |
| 350 | 6 | 114,0 | 378,0 | 381,0 | 465,0 | 110,5 | 7,7 | 79,7 | 478,2 |
| 400 | 6 | 113,0 | 429,0 | 432,0 | 517,0 | 112,5 | 8,1 | 94,7 | 568,2 |
| 450 | 6 | 120,0 | 480,0 | 483,0 | 575,0 | 115,5 | 8,6 | 111,8 | 670,8 |
| 500 | 6 | 125,0 | 532,0 | 535,0 | 630,0 | 117,5 | 9,0 | 129,3 | 775,8 |
| 600 | 6 | 135,0 | 635,0 | 638,0 | 739,0 | 122,5 | 9,9 | 168,4 | 1.010,4 |
| 700 | 7 | 158,0 | 738,0 | 741,0 | 863,0 | 147,5 | 10,8 | 215,1 | 1.505,7 |
| 800 | 7 | 150,0 | 842,0 | 845,0 | 974,0 | 147,5 | 11,7 | 264,1 | 1.848,7 |
| 900 | 7 | 155,0 | 945,0 | 948,0 | 1.082,0 | 147,5 | 12,6 | 317,2 | 2.220,4 |
| 1000 | 7 | 165,0 | 1.048,0 | 1.015,0 | 1.191,0 | 157,5 | 13,5 | 375,0 | 2.625,0 |
| 1200 | 7 | 170,0 | 1.255,0 | 1.258,0 | 1.412,0 | 167,5 | 15,3 | 505,3 | 3.537,1 |
