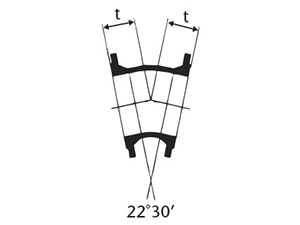

Curva 22º Classic Flanges
Curva de 22°30' com flanges, em ferro fundido dúctil, conforme norma NBR 7675, para transporte de água bruta ou tratada.
Revestimento Interno:
Pintura betuminosa
Revestimento Externo:
Pintura betuminosa
Pintura betuminosa
Revestimento Externo:
Pintura betuminosa
-
ET - Tubos e Conexões para Adução e Distribuição de Água (Saneamento)
DOWNLOAD
| DN | t | e | PN 10 | PN 16 | PN 25 |
|---|---|---|---|---|---|
| mm | mm | Kg | Kg | Kg | |
| 80 | 105,0 | 13,0 | 13,0 | 13,0 | |
| 100 | 110,0 | 17,0 | 17,0 | 18,0 | |
| 150 | 119,0 | 28,0 | 28,0 | 30,0 | |
| 200 | 131,0 | 41,0 | 41,0 | 45,0 | |
| 250 | 149,0 | 56,0 | 56,0 | 62,0 | |
| 300 | 210,0 | 73,0 | 73,0 | 83,0 | |
| 350 | 179,0 | 99,0 | 105,0 | 121,0 | |
| 400 | 239,0 | 124,0 | 136,0 | 158,0 | |
| 450 | 209,0 | 156,0 | 171,0 | 194,0 | |
| 500 | 224,0 | 180,0 | 210,0 | 234,0 | |
| 600 | 254,0 | 258,0 | 305,0 | 333,0 | |
| 700 | 284,0 | 344,0 | 374,0 | 444,0 | |
| 800 | 314,0 | 472,0 | 510,0 | 608,0 | |
| 900 | 344,0 | 605,0 | 653,0 | 773,0 | |
| 1000 | 374,0 | 781,0 | 865,0 | 1021,0 | |
| 1200 | 434,0 | 1110,0 | 1238,0 | 1438,0 |
