Flange Cego Integral
Flange Cego em ferro fundido dúctil, conforme norma NBR 15420, para transporte de esgoto.
Revestimento Interno:
Pintura epóxi vermelha
Revestimento Externo:
Pintura epóxi vermelha
Pintura epóxi vermelha
Revestimento Externo:
Pintura epóxi vermelha
| PN 10 | PN 16 | PN 25 | |||||
|---|---|---|---|---|---|---|---|

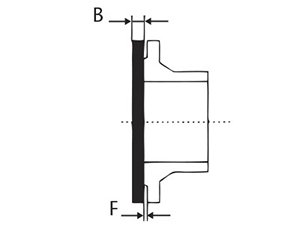

| DN | F | B | Massa | B | Massa | B | Massa |
| mm | mm | Kg | mm | Kg | mm | Kg | |
| 50 | 3 | 16,0 | 2,4 | 16,0 | 2,4 | 16,0 | 2,4 |
| 80 | 3 | 16,0 | 3,6 | 16,0 | 3,6 | 16,0 | 3,6 |
| 100 | 3 | 16,0 | 4,3 | 16,0 | 4,3 | 16,0 | 4,8 |
| 150 | 3 | 16,0 | 7,2 | 16,0 | 7,2 | 17,0 | 8,3 |
| 200 | 3 | 17,0 | 11,0 | 17,0 | 11,0 | 19,0 | 13,3 |
| 250 | 3 | 19,0 | 17,0 | 19,0 | 17,0 | 21,5 | 21,0 |
| 300 | 4 | 20,5 | 24,0 | 20,5 | 24,0 | 23,5 | 30,0 |
| 350 | 4 | 20,5 | 30,0 | 22,5 | 33,0 | 26,0 | 43,0 |
| 400 | 4 | 20,5 | 36,0 | 24,0 | 44,0 | 28,0 | 58,0 |
| 450 | 4 | 21,5 | 68,0 | 26,0 | 75,5 | 30,5 | 87,0 |
| 500 | 4 | 22,5 | 56,0 | 27,5 | 77,0 | 32,5 | 94,0 |
| 600 | 5 | 25,0 | 85,0 | 31,0 | 121,0 | 37,0 | 144,0 |
| 700 | 5 | 27,5 | 123,0 | 34,5 | 156,0 | 41,5 | 215,0 |
| 800 | 5 | 30,0 | 172,0 | 38,0 | 218,0 | 46,0 | 304,0 |
| 900 | 5 | 32,5 | 224,0 | 41,5 | 286,0 | 50,5 | 397,0 |
| 1000 | 5 | 35,0 | 293,0 | 45,0 | 387,0 | 55,0 | 535,0 |
| 1200 | 5 | 40,0 | 575,0 | 52,0 | 662,0 | 64,0 | 843,0 |
