Tê Classic Bolsas



Tê com bolsas JGS, JTI e JTE, em ferro fundido dúctil, conforme norma NBR 7675, para transporte de água bruta ou tratada.

    Revestimento Interno:
    Pintura betuminosa

    Revestimento Externo:
    Pintura betuminosa

    • ET - Tubos e Conexões para Adução e Distribuição de Água (Saneamento)

      DOWNLOAD

    • IT - Identificação das marcações dos anéis de borracha

      DOWNLOAD

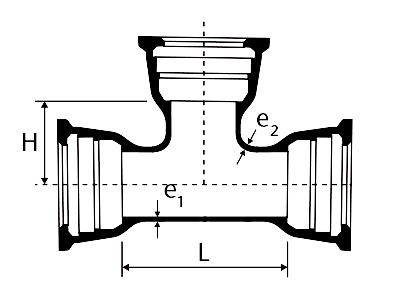

    Corpo Derivação Massa
    DN dn L e1 H e2 JGS JTI JTE
    mm mm mm mm Kg Kg Kg
    80 80 170,0 7,0 155,0 7,0 11,0 11,0 -
    100 80 170,0 7,2 95,0 7,0 17,1 17,1 -
    100 100 190,0 7,2 95,0 7,2 18,4 18,4 -
    150 80 170,0 7,8 120,0 7,0 22,9 22,9 -
    150 100 195,0 7,8 120,0 7,2 25,0 25,0 -
    150 150 285,0 7,8 125,0 7,8 29,7 29,7 -
    200 80 175,0 8,4 145,0 7,0 32,3 32,3 -
    200 100 200,0 8,4 145,0 7,2 32,8 32,8 -
    200 150 255,0 8,4 150,0 7,8 38,9 38,9 -
    200 200 315,0 8,4 155,0 8,4 45,5 45,5 -
    250 80 180,0 9,0 170,0 7,0 39,0 39,0 -
    250 100 200,0 9,0 170,0 7,2 39,5 39,5 -
    250 250 375,0 9,0 190,0 9,0 58,9 58,9 -
    300 80 180,0 9,6 195,0 7,0 50,0 50,0 124,2
    300 100 205,0 9,6 195,0 7,2 54,7 54,7 128,9
    300 150 260,0 9,6 200,0 7,8 57,5 57,5 131,7
    300 200 320,0 9,6 205,0 8,4 67,6 67,6 141,8
    300 250 375,0 9,6 210,0 9,0 77,6 77,6 151,8
    300 300 435,0 9,6 220,0 9,6 83,0 83,0 157,2
    350 100 205,0 10,2 220,0 7,2 65,0 65,0 144,0
    350 200 328,0 10,2 235,0 8,4 76,2 76,2 155,2
    350 250 360,0 10,2 250,0 9,0 77,0 77,0 156,0
    350 350 495,0 10,2 250,0 10,2 105,0 105,0 184,0
    400 80 185,0 10,8 245,0 7,0 74,5 74,5 175,5
    400 100 210,0 10,8 245,0 7,2 73,9 73,9 174,9
    400 200 325,0 10,8 260,0 8,4 92,2 92,2 193,2
    400 300 440,0 10,8 270,0 9,6 114,6 114,6 215,6
    400 400 560,0 10,8 280,0 10,8 132,9 132,9 233,9
    500 80 190,0 12,0 295,0 7,0 103,0 103,0 252,8
    500 100 215,0 12,0 295,0 7,2 103,0 103,0 252,8
    500 200 330,0 12,0 310,0 8,4 118,1 118,1 267,9
    500 300 450,0 12,0 320,0 9,6 157,4 157,4 307,2
    500 500 680,0 12,0 340,0 12,0 198,0 198,0 347,8
    600 100 220,0 13,2 345,0 7,2 140,0 140,0 343,4
    600 200 340,0 13,2 360,0 8,4 168,0 168,0 371,4
    600 300 455,0 13,2 370,0 9,6 197,0 197,0 400,4
    600 400 570,0 13,2 380,0 10,8 225,0 225,0 428,4
    600 600 800,0 13,2 400,0 13,2 287,0 287,0 490,4
