Cruzeta Integral Bolsas

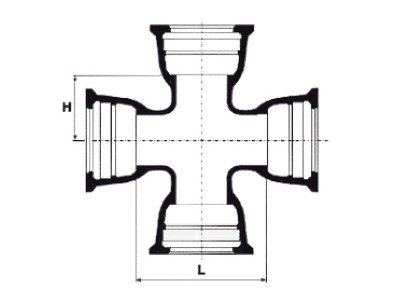

Cruzeta com bolsas JGS, JTI e JTE, em ferro fundido dúctil, conforme norma NBR 15420, para transporte de esgoto.

    Revestimento Interno:
    Pintura epóxi vermelha

    Revestimento Externo:
    Pintura epóxi vermelha

    • ET - Tubos e Conexões para Transporte de Esgoto

      DOWNLOAD

    • Manual Técnico de Montagem e Manutenção

      DOWNLOAD

    • IT - Anéis de borracha NBR

      DOWNLOAD

    • IT - Identificação das marcações dos anéis de borracha

      DOWNLOAD

    Massas
    DN dn L H JGS JTI JTE
    mm mm Kg Kg Kg
    80 80 160,0 80,0 16,0 16,0 -
    100 80 165,0 95,0 23,1 23,1 -
    100 100 190,0 95,0 25,1 25,1 -
    150 80 165,0 120,0 27,9 27,9 -
    150 100 195,0 120,0 29,7 29,7 -
    150 150 255,0 125,0 38,0 37,9 -
    200 80 170,0 145,0 33,6 33,6 -
    200 100 200,0 145,0 38,2 38,2 -
    200 150 255,0 150,0 46,3 46,3 -
    200 200 315,0 155,0 55,7 55,6 -
    250 80 170,0 170,0 42,7 42,7 -
    250 100 200,0 170,0 44,0 44,0 -
    250 250 375,0 190,0 77,4 77,4 -
    300 80 175,0 195,0 50,1 50,1 125,5
    300 100 205,0 195,0 56,6 56,6 132
    300 200 320,0 205,0 75,2 75,2 150,6
    300 300 435,0 220,0 104,0 104 254,8
    350 100 205 220 64,5 64,5 142,5
    350 200 325,0 230,0 82,7 82,7 160,7
    350 250 495 250 92,2 92,2 170,2
    400 80 180,0 245,0 79,8 79,8 175,8
    400 100 210,0 245,0 82,2 82,2 178,2
    400 200 325,0 260,0 104,0 109,0 200,0
    400 400 560,0 280,0 158,8 158,8 350,8
    500 80 185,0 295,0 108,0 108,0 255,2
    500 100 215,0 295,0 107,0 107,0 254,2
    500 200 330,0 305,0 132,0 132,0 279,2
    500 300 450,0 320,0 160,0 160,0 382,6
    500 500 680,0 340,0 223,0 223,0 514,4
    600 100 220,0 345,0 143,0 143,0 314,0
    600 200 340,0 355,0 175,0 175,0 346,0
    600 300 455,0 370,0 207,0 207,0 453,4
    600 400 570,0 380,0 240,0 240,0 507,0
    600 600 800,0 400,0 330,0 330,0 672,0
